Thanks to shop drawing studies, production lengths, material quantities, and assembly details are clarified in advance. Thus, potential errors on site are minimized, processes are optimized, and high efficiency is achieved in terms of time and cost.

These drawings are not merely a plan, but also a technical guide to be followed during assembly.

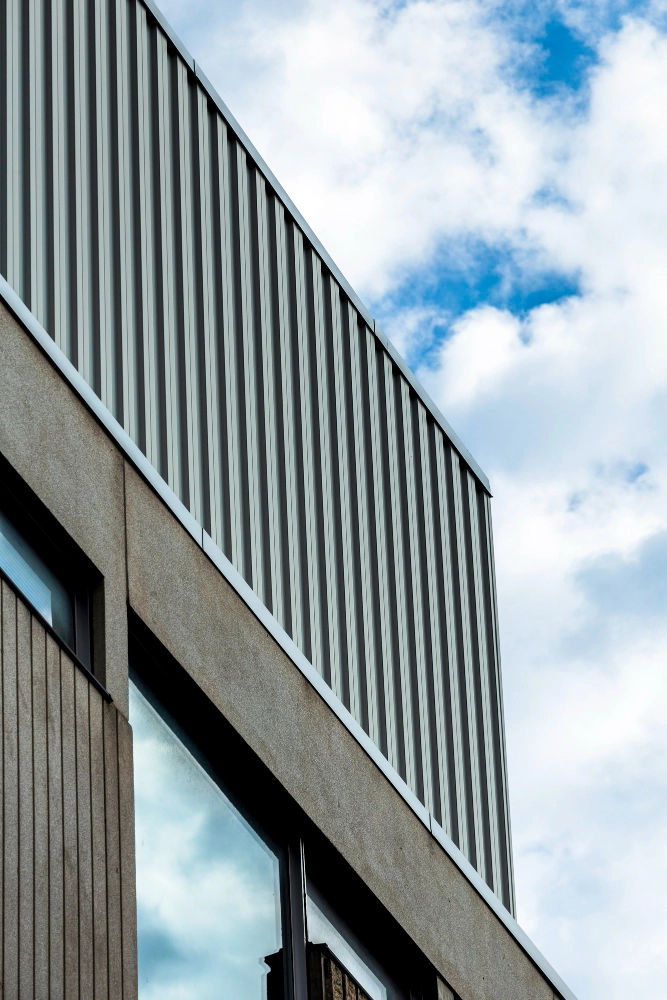

Especially in works with high detail sensitivity such as roof and facade panels, trapezoidal sheet systems, and special accessory applications, the shop drawing process is an indispensable step for the success of the project.

ESEM Yapı – Professional Shop Drawing Services

Do you want to complete your projects smoothly and on time? ESEM Yapı accelerates your implementation process with shop drawing (manufacturing drawing) services and maximizes the accuracy rate.

Detailed drawings prepared according to the type and dimensions of the selected products ensure that all processes proceed smoothly during the manufacturing and assembly stages. Every detail is meticulously planned: production lengths, layout plans, and project-specific accessory drawings are prepared. The connection elements and sheet metal accessories to be used are determined, quantities are clarified, waste rate is reduced, and unnecessary material waste is prevented.

Technical incompatibilities are identified prior to implementation, preventing errors that may occur on site. Thus, assembly time is shortened, project costs are reduced, and every stage proceeds with confidence.

This service plays a critical role in terms of manufacturing controls, especially in large-scale and detailed roof and facade projects.

With ESEM Yapı, the right drawing is the guarantee of the right application.
